LC/UPC-LC/UPC | UNI10 | Uniboot Patch Cord | G657.A2

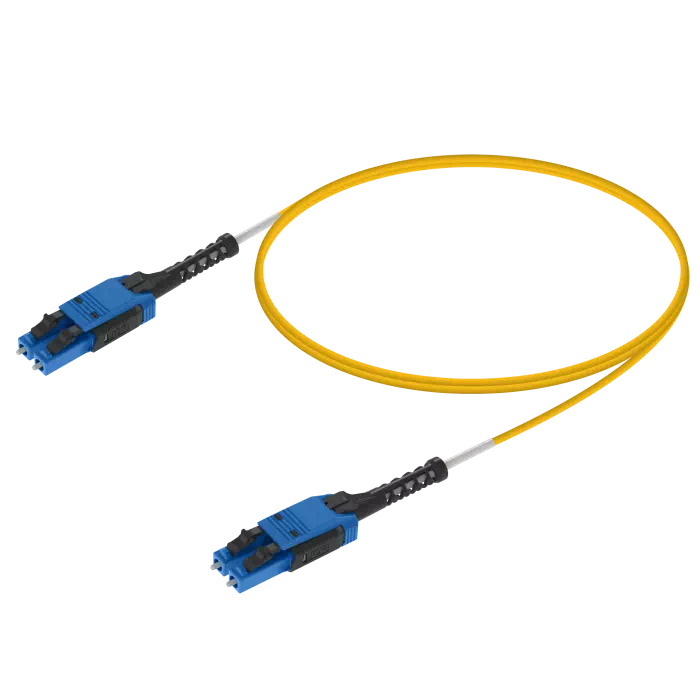

This LC Uniboot Fiber Patch Cable features a duplex single mode LC/UPC connector on both ends, built for modern high-density network environments. It’s engineered with a specialized round duplex cable that enables dual-fiber transmission through a single 2.0mm or 3.0mm jacket, reducing bulk while maintaining performance.

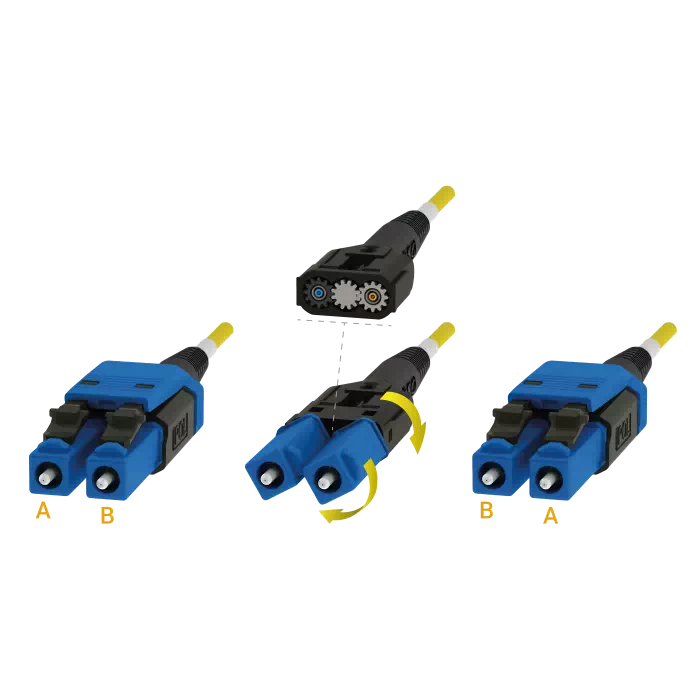

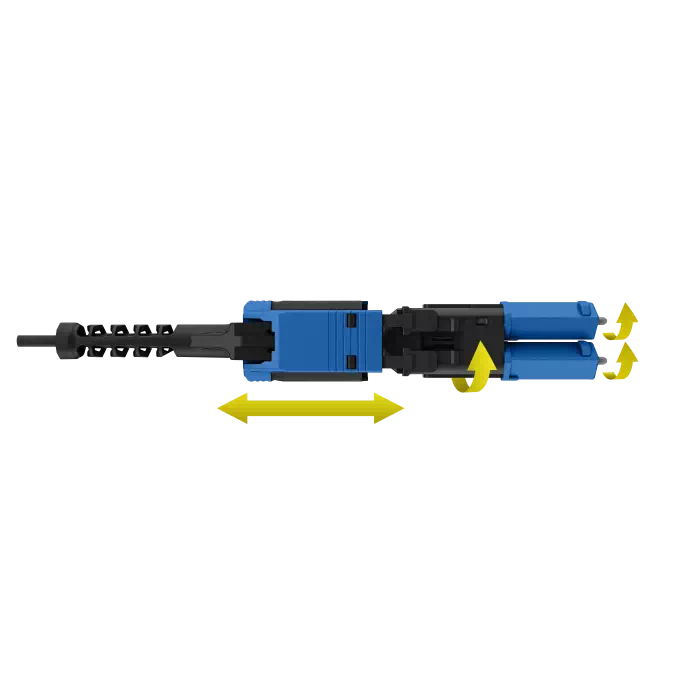

What sets it apart is its tool-free polarity reversal system. Thanks to a rotatable LC connector with a secure 180° stop, you can switch polarity easily — without exposing the internal fiber or stressing the core. The built-in retractable housing keeps everything protected during the adjustment.

Designed for tight spaces, this uniboot patch cord’s low-profile form and push-pull tab (DirectConec™) allow seamless access and removal even in fully populated panels. Ideal for technicians working in high-density racks where space and reliability are critical.

Technical Highlights

• Insertion Loss: ≤ 0.30 dB (IEC 61300-3-4, Method B)

• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC) (IEC 61300-3-6, Method B)

• Connector Durability: <0.1 dB variation over 500+ cycles

• Operating Temp Range: -40°C to +85°C

• Flame Rating: UL94 V-0 compliant

• Connector Geometry: Meets IEC 61755-3 standards

• LC Connector Standards: Compliant with IEC 61754-20, TIA 604-10, and RoHS

Key Advantages

• Saves up to 50% space compared to traditional duplex patch cords

• Polarity switching in seconds — no tools, no fiber exposure

• Color-coded window clearly indicates polarity position

• Compact housing with push-pull boot for high-density ease of use

• Available in 2mm or 3mm jacket options for both single-mode and multimode use

• Exceeds IEC Grade B standards for insertion loss (≤ 0.25 dB for ≥ 97% of units)
