LC/UPC-LC/UPC | UNI10 | Uniboot Patch Cord | Multi-Mode G651.OM3

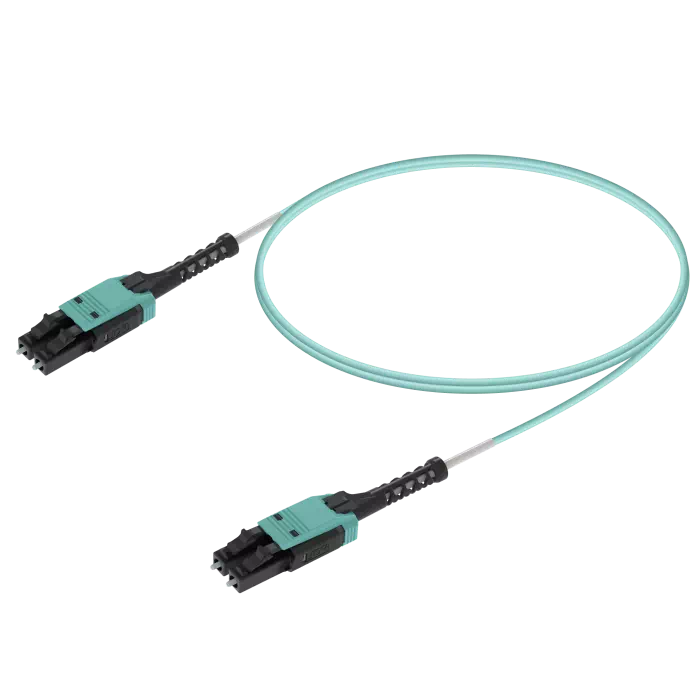

This LC/UPC–LC/UPC OM3 Uniboot Patch Cord is designed for high-performance multimode applications in environments where space is at a premium. It features duplex LC connectors and uses a round 2.0mm or 3.0mm cable that carries two fibers in a single jacket — minimizing bulk and simplifying cable management.

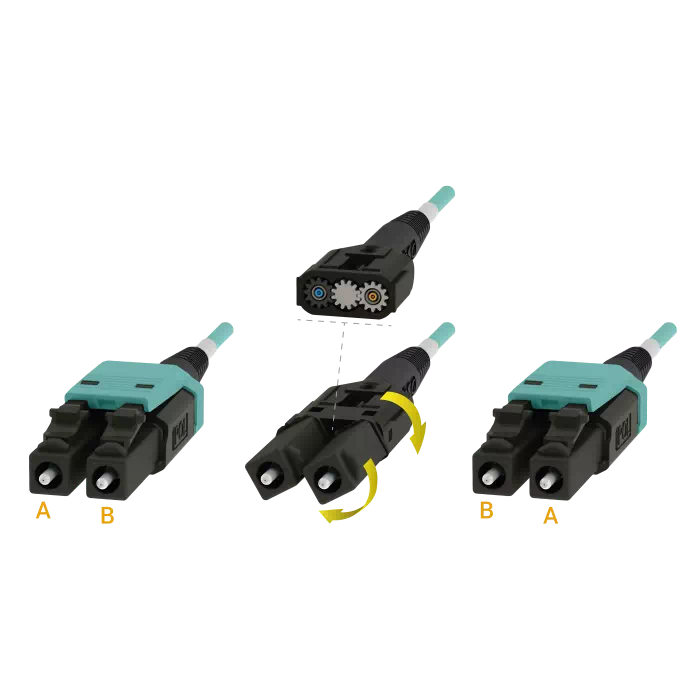

Its smart polarity reversal system allows for quick switching between A-B and B-A without needing tools. The rotatable connector housing includes a built-in 180° limit, protecting the internal fiber from excessive twist or damage. Importantly, polarity can be changed without exposing the fibers to external elements, preserving their integrity.

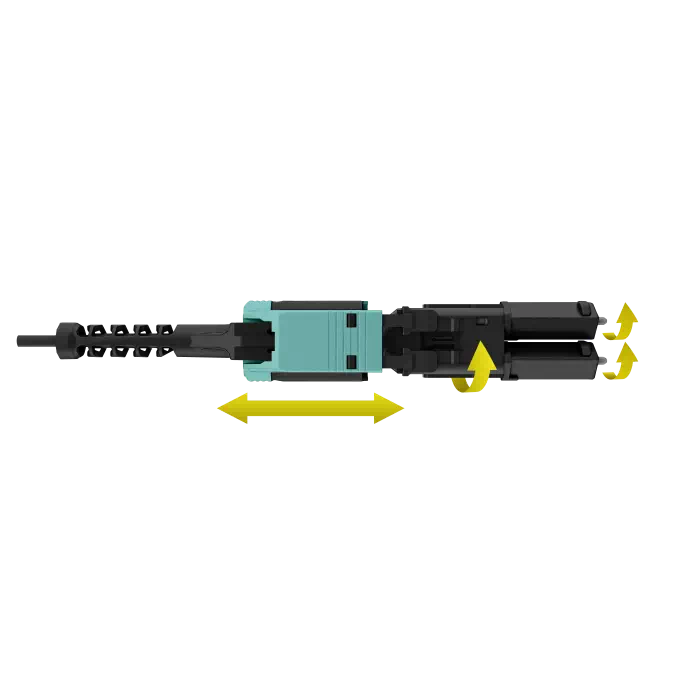

The low-profile connector housing is tailored for high-density patch panels. It offers easy access to tightly spaced ports, and the DirectConec™ push-pull mechanism ensures smooth and secure insertion or removal — even in the most crowded setups.

Performance Specs

• Insertion Loss: ≤ 0.30 dB (per IEC 61300-3-4, Method B)

• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC) (IEC 61300-3-6, Method B)

• Mechanical Durability: <0.1 dB typical variation across 500+ connections

• Temp Range: -40°C to +85°C

• Fire Rating: UL94 V-0

• Connector Face Geometry: IEC 61755-3

• Standards Compliance: IEC 61754-20, TIA 604-10, RoHS

Key Benefits

• Up to 50% space savings over standard patch cords

• No-tool polarity reversal — clean, fast, and fiber-safe

• Easy-to-read color-coded polarity indicator

• Slimline design with push-pull tab for high-density installations

• Offered in both 2mm and 3mm versions

• Meets Grade B insertion loss performance (≤ 0.25 dB for 97% of units)
