LC/UPC-LC/UPC | UNI10 | Uniboot Patch Cord | Multi-Mode G651.OM4

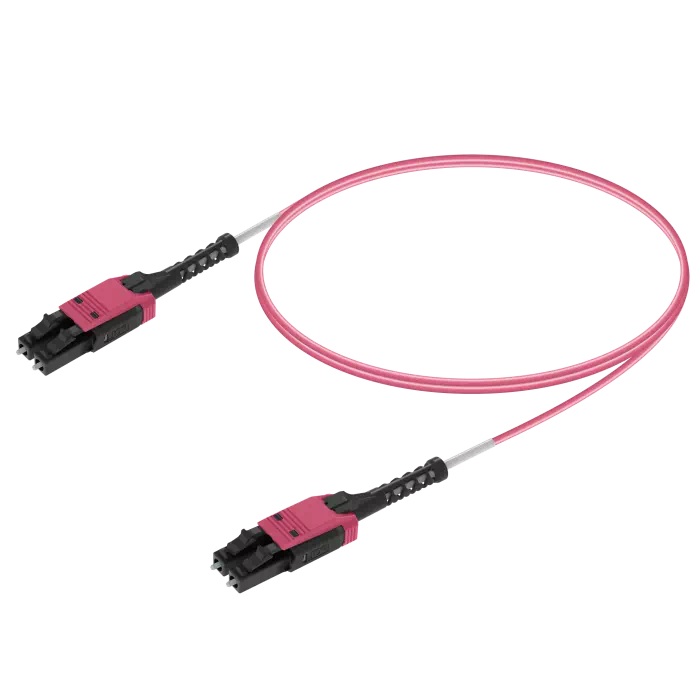

This LC/UPC to LC/UPC OM4 Multimode Uniboot Patch Cord is built for efficiency and performance in dense network environments. Equipped with dual LC connectors and OM4 fiber, it uses a unified 2.0mm duplex cable, allowing two-fiber transmission in a single round jacket — reducing clutter and improving cable management.

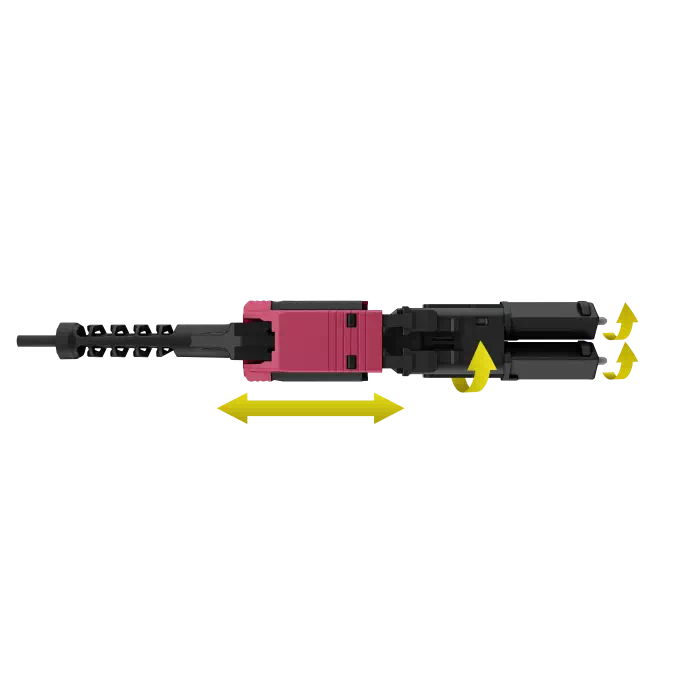

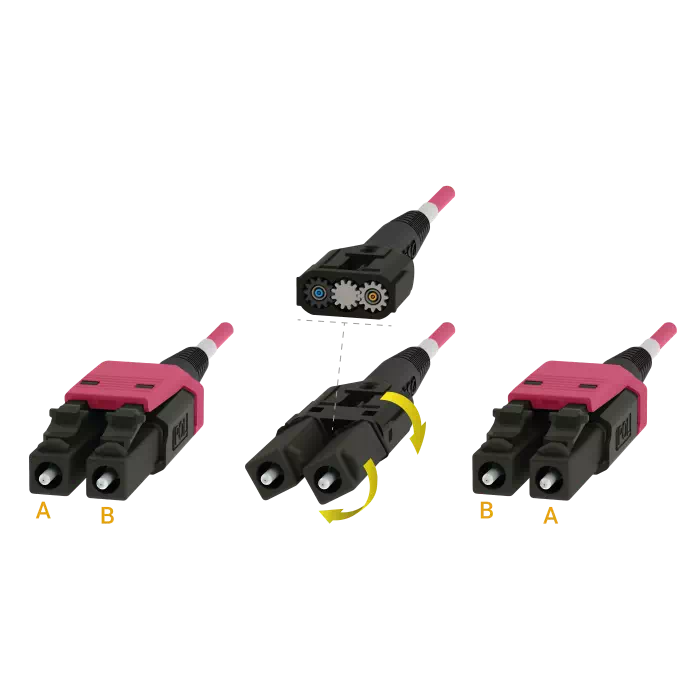

Thanks to its smart reversible polarity design, switching between A-B and B-A configurations is quick and tool-free. The mechanism features a rotatable connector with a built-in 180° safety stop, ensuring the fiber is never strained or exposed during adjustment. The retractable housing also keeps the internal fibers protected during handling.

Its slimline uniboot construction, paired with a DirectConec™ push-pull tab, makes installation and removal smooth — even in tight, fully populated patch panels. Designed with data center engineers in mind, this patch cord simplifies maintenance while maximizing space savings.

Performance Specifications

• Insertion Loss: ≤ 0.30 dB (Tested to IEC 61300-3-4, Method B)

• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC) (IEC 61300-3-6, Method B)

• Durability: Typical variation <0.1 dB after 500+ connection cycles

• Operating Temperature: -40°C to +85°C

• Flammability Rating: UL94 V-0

• End Face Compliance: IEC 61755-3

• Standards: IEC 61754-20, TIA 604-10, RoHS

Key Features

• Space-efficient: Saves up to 50% rack space compared to standard duplex patch cords

• Fast polarity switching: No tools required, no fiber exposure

• Clear polarity indicator: Color-coded window for easy orientation

• Push-pull boot: Ideal for high-density environments

• Available in 2.0mm or 3.0mm cable options

• Exceeds Grade B attenuation standards (≤ 0.25 dB max for ≥ 97% of connectors)
